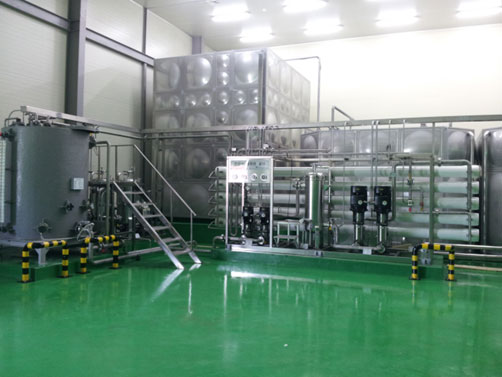

Brine NF Membrane Installation Photos
Successful projects delivered with proven technology

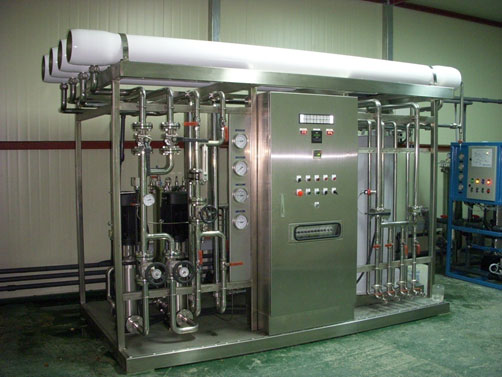

Company P (30 m³/day)
Solving the concentrate issue
from RO processes
with economical and efficient solutions
Challenges with concentrate from RO processes
Limited facility sites with
difficulty expanding
specific installations
Economic burden from rising
expansion costs due to strict
water quality requirements
Effectively responding to
stricter environmental regulations
through high recovery rates
An economical solution that
dramatically reduces
high operating costs
Wastewater treatment and reuse across various industries
Aquaworks' Brine Reuse System
Not only optimizing industrial water quality,
but also through energy cost reduction,
we can deliver eco-friendly benefits as well.
Optimized process for efficient brine treatment
Optimized membrane system enables automated operation with very easy maintenance.
Applicable to kimchi manufacturing, food desalination, and microbial separation.
As a product manufacturing process where chemicals cannot be used, the membrane system is the optimal solution.
Reducing salt usage in the brining process lowers production costs and is expected to boost exports.
NF separation reduces brine waste to approx. 1/10, cutting treatment costs and required facility space.
Brine reuse significantly reduces groundwater consumption, delivering cost savings.
Economical and transparent operating costs
Note: Calculated based on 30 m³/day.
Power cost assumed at KRW 55/kWh.
Consumable replacement cycles may vary
depending on waste brine conditions.
Proven technology
delivering economical and efficient solutions
Automated membrane treatment and CIP process
Extends membrane life, easy protection & management
Fully automated operation and cleaning
Immediate response when issues arise
Easy monitoring via panel gauges
Core engineering technology secured
SS304/316 (Stainless Steel) material for long-term use
Removes color, odor, and organics
Hygienically stable operation
Easy equipment operation & management
Simple process saves space
Dramatically reduced salt consumption
Stable performance guaranteed
through optimized operating conditions
15-20 bar
Low-Pressure Operation
15-40 °C
Ambient Temperature
3-10
Wide Application Range
85-95%
High Recovery Rate
50-70%
Selective Removal of Divalent Ions
Superior economics and environmental performance
vs. conventional systems
Successful projects delivered with proven technology
